General Information

ADI Part Number

305002802

Brand Name

Hikvision

Manufacturer Part Number

iDS-TCM403-GIR/POE/0832(O-STD)

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Lens Type

Fixed

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8 mm

Night Vision

Yes

Night Vision Type

Infrared (IR)

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/25 Second

Minimum Illumination

0.001 Lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-12 mm, 8-32 mm

Maximum Focal Length

32 mm

Physical Characteristics

Durability

Dust Resistant, Vandal Proof, Water Resistant

Power Description

Input Voltage

12-24V DC

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

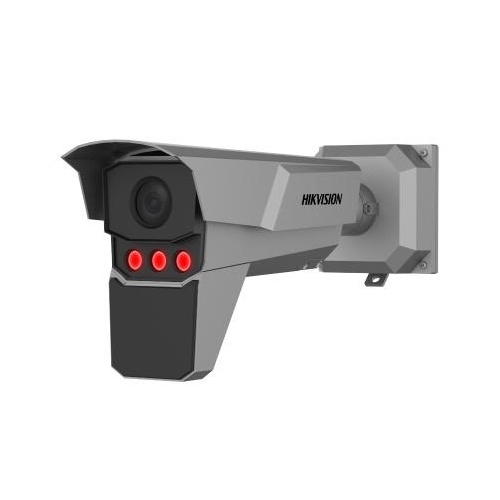

Hikvision iDS-TCM403-GIR/POE/0832(O-STD) 4MP Radar-Assisted ANPR Smart Monitoring Camera
